How to Read Architectural Drawings: Beginner’s Guide
Demystifying Architectural Drawings: The Essential Foundations
Architectural drawings might seem like a complex puzzle at first, but they're the bedrock of communication in the construction world. These documents act as a universal language, translating the architect's vision into a format understood by builders, contractors, and clients. They're the detailed roadmap that guides the transformation of an idea into a physical building.
Types of Architectural Drawings
Several different drawing types combine to provide a complete view of the project. These include site plans, floor plans, elevations, sections, and details. Each serves a unique function and provides information tailored to various stakeholders.
Site Plans: These drawings show the building's location within its environment, including property lines, landscaping, and surrounding infrastructure. Site plans give contractors a clear picture of the project’s context.
Floor Plans: Offering a bird’s-eye view of the building's layout, floor plans illustrate the arrangement of rooms, walls, and openings. These plans are invaluable for clients visualizing their future space and for contractors planning the building's internal structure.
Elevations: Elevations depict the exterior walls of the building as if viewed straight on. They showcase exterior finishes, window placement, and the overall aesthetic from various angles.
Sections: Imagine cutting a vertical slice through the building. Sections reveal the inner workings and the relationships between different levels, providing crucial structural details for contractors.
Details: These drawings zoom in on specific building components, providing exact measurements and specifications. This level of detail is vital for constructing complex elements like windows, doors, and structural connections.
The Importance of Australian Standards
Adhering to Australian drawing standards is essential for ensuring clear communication and regulatory compliance. These standards have a fascinating history, with the first building standard used in the construction of the Sydney Harbour Bridge in 1922. This event was a key moment for Australian standardization and led to the creation of Standards Australia, which continues to shape the interpretation of architectural drawings today.
Reading Drawings: A Collaborative Effort
The different types of architectural drawings work together to form a comprehensive project overview. For example, a floor plan shows a room's layout, while the corresponding elevation reveals the window heights and external cladding. You can explore more about our services through Our Sitemap.
This interconnectedness emphasizes that reading architectural drawings is a collaborative process. Architects, engineers, builders, and even clients must understand these drawings to ensure a successful project. Understanding how to interpret these drawings empowers all involved to contribute effectively. This collaborative approach, guided by Australian standards, keeps everyone on the same page, from initial concept to final completion.
Breaking the Code: Symbols, Lines, and Annotations That Matter
Architectural drawings utilize a unique visual language, much like a secret code. This language is composed of symbols, lines, and annotations, each holding a specific meaning crucial for understanding the design. This section explores this intricate visual language, equipping you with the tools to interpret common symbols, understand the significance of line weights, and appreciate the context provided by annotations.
Understanding Line Weights and Types
In architectural drawings, line weight, or thickness, is far from arbitrary. It conveys critical information about the element represented. Thick lines commonly represent walls or other major structural elements, providing a clear visual anchor for the design. Thin lines, on the other hand, often represent dimensions, furniture outlines, or finer details, adding layers of information without overwhelming the overall composition. Dashed lines typically indicate hidden features, such as walls located above or below the current view. For example, a dashed line on a floor plan might signify the upper cabinets in a kitchen. This visual hierarchy allows professionals to quickly grasp the spatial relationships within the design.
Decoding Common Symbols
Similar to how musical notes create a melody, architectural symbols represent a variety of building elements, from doors and windows to plumbing fixtures and electrical outlets. Doors are frequently depicted as gaps in walls, with an arc indicating the swing direction. Windows are typically represented as rectangles within the wall lines. Interestingly, different symbols exist for various window types, such as sliding, awning, or fixed windows. Even subtle variations in plumbing fixture symbols differentiate between toilets, sinks, and showers. This standardized system of symbols ensures consistent interpretation across different projects and teams, facilitating clear communication.
The Role of Annotations and Revision Marks
Annotations add essential context to architectural drawings. They might include dimensions, material specifications, or explanatory notes, enriching the drawing with detailed information. For instance, an annotation next to a window could specify its type, size, and frame material. This added information clarifies details that the drawing alone cannot convey. Furthermore, revision marks, often represented by clouds or revision triangles, track design changes throughout the project's lifecycle. These marks are vital for keeping all stakeholders informed about the latest modifications, ensuring everyone is on the same page.
The development of Australian architectural drawing standards emphasizes the importance of consistent communication. Organizations like the Institute of Draftsmen Australia have played a significant role in promoting standardized drawing practices. Publications like 'Architectural drawing standards and conventions', published in 1988, drew upon established standards like AS1100 to ensure clarity and consistency in architectural drawings. This standardization is particularly crucial for communication between architects, engineers, and builders. Explore this topic further here. These evolving standards have a significant impact on the accuracy and precision of Australian construction projects.
Mastering the Visual Language
By understanding this visual language, you transition from merely looking at drawings to truly reading and comprehending them. This ability to quickly interpret symbols, line weights, and annotations is essential for understanding complex designs and communicating effectively with construction professionals. This acquired visual literacy facilitates a thorough grasp of the architect’s intentions, ultimately contributing to a smoother, more efficient building process.
Making Sense of Scale: From Paper Dimensions to Real Buildings
That small line on a drawing can represent an entire wall! Understanding this translation is thanks to scale, a fundamental concept in architectural drawings. This section explains how to interpret scale, allowing you to confidently translate paper dimensions into real-world measurements.
What is Scale and Why is it Important?
Scale is simply the ratio between the size of something on a drawing and its actual size. It's expressed as a ratio, like 1:100. This means one unit on the drawing equals 100 units in real life. So, a 1cm line on a 1:100 scale drawing represents 1 meter on the actual building.
Why is this so important? Imagine squeezing an entire house plan onto a piece of A4 paper without scaling it down! Scale allows us to represent large structures on manageable paper sizes.
Common Scales in Australian Architectural Drawings
Different drawings require different scales depending on the detail needed. Site plans, showing the overall property and surrounding area, often use smaller scales like 1:200 or 1:500. Floor plans, showing individual rooms and layouts, use larger scales like 1:50 or 1:100.
To illustrate the common scales used in Australia, the following table provides a breakdown of their typical usage, level of detail, and common applications.
Common Drawing Scales in Australian Architectural Plans
This table presents the most frequently used drawing scales in Australian architectural drawings and what types of plans typically use each scale.
Scale | Typical Usage | Level of Detail | Common Application |
|---|---|---|---|
1:1000 | Site Plans | Low | Block layouts |
1:200 | Site Plans | Medium | Site boundaries |
1:100 | Floor Plans | Medium | Room dimensions |
1:50 | Floor Plans/Details | High | Fixture placement |
1:20 | Details | Very High | Joinery specifics |
As shown in the table, the scale used significantly impacts the level of detail conveyed in the drawing. Choosing the right scale is essential for effective communication of architectural design.
Tools for Measuring and Interpreting Scale
Architects traditionally use scale rulers to measure distances on scaled drawings. These rulers have multiple scales marked on them, allowing for direct measurement conversion.
With the rise of digital drawings, software programs like AutoCAD offer tools for precise measurement and scale adjustments. These tools calculate real-world dimensions directly from the drawing, minimizing potential errors.
Avoiding Common Pitfalls
One common mistake is assuming all drawings in a set use the same scale. Always double-check the scale indicated on each drawing.
Another pitfall is relying on scaled printouts. Printing can distort a drawing's proportions. It's always best to work with the original digital files or verified prints. Consistently verifying the scale on each drawing is crucial for accurate interpretation. Read also: How to master various aspects of home design and building. By mastering scale interpretation, you’ll gain confidence in understanding the true dimensions of a building project from its drawings.
Navigating the Blueprint Ecosystem: Drawing Types Decoded
Understanding architectural drawings is like learning a new language. Each drawing type tells a different part of the building's story, contributing to a complete understanding of the project. This section will guide you through the various types, highlighting their unique roles and how they work together.
Site Plans: Grounding the Design
Site plans provide the context, showing the building's location on the property. They illustrate the building's footprint, property lines, setbacks, landscaping, and surrounding infrastructure. Think of them as a map, revealing the location of driveways, utility connections, and even existing trees. This information is essential for contractors during site preparation and construction.

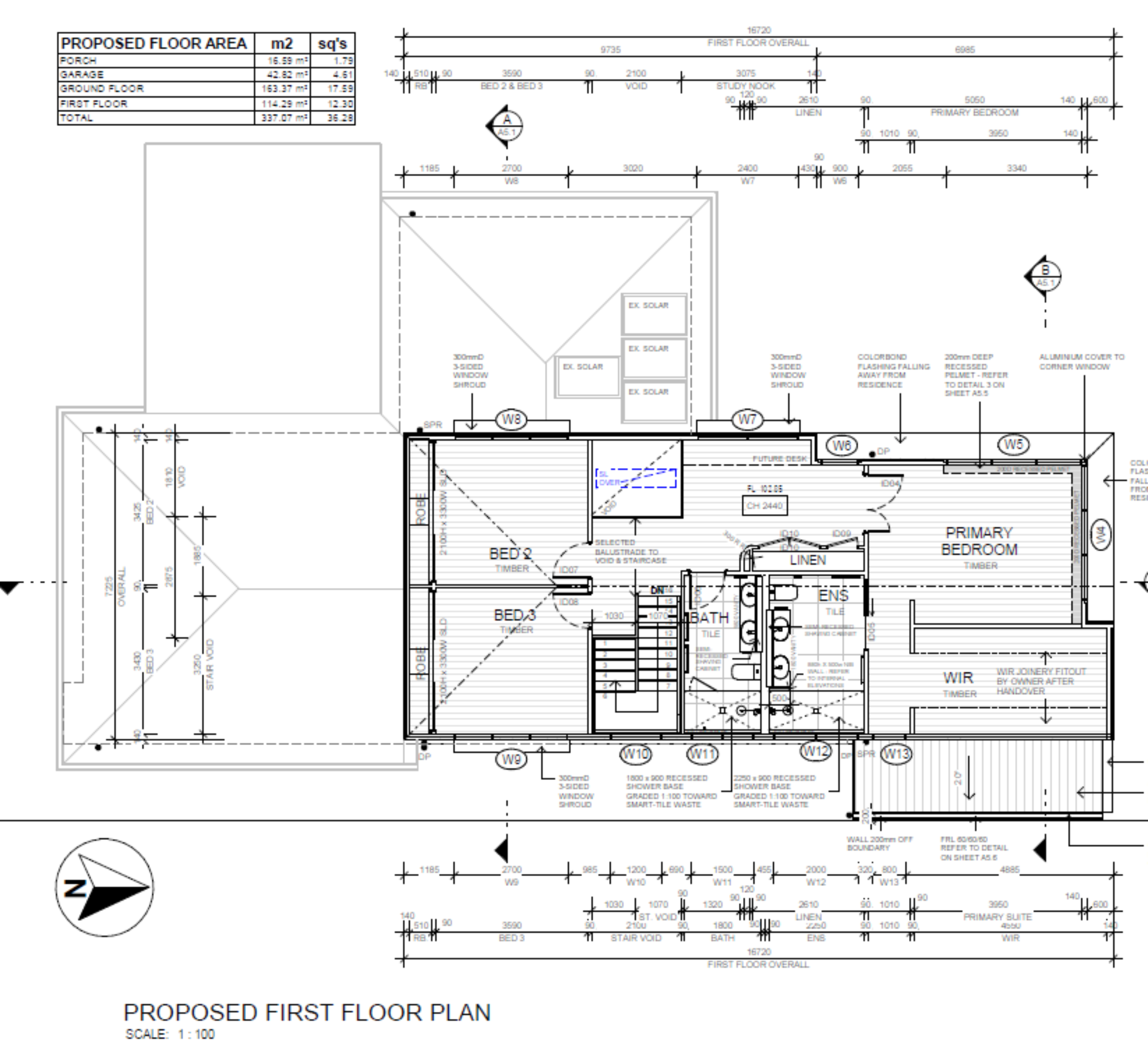

Floor Plans: Experiencing the Space
Floor plans give us a bird's-eye view of the interior layout. They depict the arrangement of rooms, walls, doors, windows, and other key features, allowing clients to visualize the flow and functionality of the space. These plans are also crucial for contractors planning electrical and plumbing systems.
Elevations: The Building's Public Face
Elevations show the building's external appearance from different viewpoints, much like standing directly in front of each side. They showcase the building's height, window and door placements, rooflines, and exterior finishes. This information is essential for material selection and ensures the final product matches the design vision. The infographic below demonstrates how a scale ruler is used to determine height dimensions on an elevation drawing.
Sections: Unveiling the Inner Workings
Sections reveal the building's internal structure. Imagine slicing vertically through the building – that’s the perspective a section drawing provides. These drawings expose hidden elements like wall construction, floor thicknesses, and the relationships between different levels. This information is vital for contractors understanding structural details.
Details: Zooming in on the Specifics
Detail drawings focus on specific components, providing precise measurements and specifications for elements like windows, doors, and joinery. These drawings often use larger scales to convey the intricate information necessary for accurate fabrication and installation.
Connecting the Dots: Cross-Referencing Drawings
Architectural drawings work together like pieces of a puzzle. Cross-referencing between different drawings is often necessary to gain a complete understanding. For example, a floor plan might indicate a window, but the corresponding elevation reveals its height. This cross-referencing process strengthens spatial reasoning skills.
To further understand the different drawing types, refer to the comparison table below:
Architectural Drawing Types Comparison: This table compares different architectural drawing types, their purposes, and what information to look for in each.
Drawing Type | Primary Purpose | Key Information | Typical Scale | Reading Tips |
|---|---|---|---|---|
Site Plan | Shows the building's location and surrounding environment | Property lines, setbacks, landscaping, utilities | 1:100 - 1:500 | Look for north arrow, scale, and key features like trees and driveways. |
Floor Plan | Depicts the interior layout of each floor | Room sizes and arrangement, doors, windows, walls | 1:50 - 1:100 | Visualize the flow of space and imagine walking through the rooms. |
Elevation | Shows the exterior appearance of each side of the building | Building height, window and door placements, rooflines | 1:50 - 1:100 | Pay attention to exterior finishes and architectural details. |
Section | Reveals the internal structure of the building | Wall construction, floor thicknesses, roof structure | 1:20 - 1:50 | Imagine cutting through the building to visualize the interior components. |
Detail | Provides specific information about individual building components | Dimensions, materials, construction techniques | 1:10 - 1:20 | Focus on precise measurements and material specifications. |
This table summarizes the key characteristics of each drawing type, making it easier to identify and interpret the information presented.
Australian Standards and Seismic Design
Architectural drawings in Australia must adhere to specific standards and regulations. These standards, particularly those concerning seismic design, have significantly evolved, especially since the 1989 Newcastle earthquake. This event highlighted the need for resilient building designs, leading to the development of vital standards like AS 1170.4 in 1993. This standard guides building design in seismically active areas, ensuring drawings reflect necessary safety measures. Discover more insights about seismic design standards in Australia.
By understanding the purpose and interplay of these different drawing types, you can confidently navigate the blueprint ecosystem, extracting the precise information needed for successful project execution. This ability to translate 2D representations into a mental 3D model is a key skill for experienced professionals.
Beyond the Lines: Specifications That Complete the Picture
Architectural drawings are the foundation of any building project, providing a visual representation of the design. However, they only tell part of the story. Specifications are the crucial companion to these drawings, acting as a detailed instruction manual that fleshes out the design intent and provides a comprehensive understanding of the building requirements.
The Symbiotic Relationship Between Drawings and Specifications
Think of drawings as the "what" and specifications as the "how." Drawings show what needs to be built: the size, shape, and location of elements. Specifications, on the other hand, detail how those elements should be constructed, outlining the materials, quality standards, and construction methods.
For example, a floor plan might show a window. The specifications, however, will define its frame material (perhaps aluminum or timber), glazing type (double-glazed or low-E), and performance requirements (energy efficiency ratings). This interplay between visual and textual information is crucial for accurate project interpretation.
The Power of Notes: Small Details, Big Impact
Notes within the specifications, while seemingly minor, can have a significant impact on construction decisions and the overall project outcome. A note specifying a particular type of timber, for instance, can influence the structural integrity and cost.
Similarly, a note detailing the required fire rating for a wall will impact material selection and installation methods. Careful attention to even the smallest details within the specifications is therefore vital.
Resolving Conflicts: When Drawings and Specifications Disagree
Occasionally, drawings and specifications might seem to contradict each other. In such cases, understanding the hierarchy of information is crucial. Typically, specifications take precedence over drawings in cases of conflict.
However, the best practice is always to clarify any discrepancies with the architect or designer. This proactive communication ensures the final product aligns with the intended design and avoids costly rework down the line.
Decoding Schedules: Extracting Critical Information
Specifications often include schedules, which are tables providing detailed information about specific building elements like doors, windows, and finishes. These schedules typically list the quantity, size, material, and other relevant attributes for each element.
Learning to efficiently extract information from these schedules can significantly streamline the drawing interpretation process and ensure accuracy throughout the project.
Real-World Examples: Insights From Construction Professionals
Experienced construction professionals understand the vital importance of synthesizing information from both drawings and specifications. They recognize that a comprehensive understanding of both is essential for avoiding errors, managing costs, and ultimately delivering a successful project. For example, a builder might consult the specifications to confirm the required insulation rating before ordering materials, even if the drawings don't explicitly show it. Check out our guide on How to master various aspects of home design and building. You might also find this helpful: How to master....
By understanding how drawings and specifications work together, you can develop a more nuanced understanding of architectural design and the construction process. This ability to connect the visual representation with the detailed requirements is essential for anyone involved in bringing a building project to life.
From 2D to Reality: Digital Tools Transforming Blueprint Reading
Architectural drawings have come a long way. We've moved from static blueprints to interactive digital models, changing how we understand these vital documents. This evolution opens exciting new doors for visualization and collaboration. Let's explore how digital tools are reshaping how we interpret architectural drawings, from simple PDF viewers to advanced Building Information Modelling (BIM) software.
Basic Digital Tools: PDFs and Beyond
The simplest digital tool for reading architectural drawings is the PDF reader. While basic, a good PDF reader lets you zoom, measure, and search within the document. This offers significant advantages over paper blueprints. Plus, free online viewers are readily available, making access easy.
BIM: A New Dimension in Drawing Interpretation
Building Information Modelling (BIM) software represents a major leap forward in how we interact with architectural drawings. BIM doesn't just display drawings; it creates a dynamic, data-rich model of the entire building. Clicking on a wall in a BIM model can reveal its material composition, fire rating, and even its cost. This information is traditionally buried within specifications. This powerful integration of drawings and data makes BIM a game-changer, especially for complex projects.
Augmented Reality: Bridging the Digital and Physical
Imagine holding up your tablet on a construction site and seeing the digital plans superimposed on the real-world environment. That's the power of augmented reality (AR). AR apps let users "walk through" the building before it’s even built, identifying potential conflicts between the design and the existing site conditions. AR is gaining popularity among construction professionals in Australia for its ability to improve on-site understanding of architectural drawings.
Cloud Collaboration: Real-Time Interaction
Cloud-based platforms are transforming how teams interact with architectural drawings. Multiple users can access, mark up, and discuss drawings in real time, no matter where they are. This improved communication streamlines decision-making and reduces errors caused by outdated information. This collaborative approach is particularly useful for projects with distributed teams, a common scenario in Australian construction.
Affordable Applications for Beginners
Several affordable applications can help beginners understand the 3D relationships often hidden within 2D drawings. SketchUp provides an intuitive interface for creating and exploring 3D models, offering a valuable tool for visualizing spatial relationships from floor plans and elevations. Various mobile apps also specialize in measurement extraction from digital drawings, effectively replacing the traditional scale ruler.
Choosing the Right Tools for the Job
While technology offers exciting possibilities, choosing tools that truly improve drawing comprehension, rather than adding complexity, is crucial. Focus on tools that best suit the project's specific needs and the user's skill level. This empowers construction professionals and beginners to unlock a deeper understanding of how to read architectural drawings. This thoughtful approach ensures technology empowers, not overwhelms, maximizing efficiency and minimizing confusion. Understanding how to read architectural drawings in the digital era is key for success in today's construction projects. This integrated approach, incorporating both traditional methods and modern technology, ensures a collaborative, efficient, and accurate building process.
Reading Like a Pro: Practical Blueprint Interpretation Strategies
Even seasoned construction professionals have their own methods for navigating large sets of architectural drawings. This section offers practical strategies to help beginners move from feeling apprehensive to confidently interpreting blueprints. We'll explore the systematic approaches professionals use when reviewing a new set of drawings, focusing on how they establish context and quickly find the information they need.
Establishing Context: The First Steps
When you receive a new set of architectural drawings, resist the urge to jump into the specifics immediately. Instead, begin by reviewing the title block on each drawing. The title block provides essential information like the project name, drawing title, scale, and revision number. This establishes the drawing's context within the overall project. This initial overview provides a framework for understanding the information that follows.
Next, locate the north arrow. Understanding the orientation helps you mentally position the building on the site and visualize its relationship to its surroundings. It's similar to orienting yourself with a map before beginning a journey. For instance, knowing which direction is north on a floor plan helps you visualize the sun's path through the building. This understanding informs how you interpret natural light and ventilation within the design.
Locating Critical Information
Once you've established context, you can begin locating specific information. If you need the dimensions of a particular room, refer to the floor plans. To find the exterior finish of a wall, check the elevations. For specific material details, consult the specifications. Knowing which drawing contains which information significantly streamlines the process. It's like knowing which section of a library to browse for a specific book genre.
Identifying Errors and Inconsistencies
As you review the drawings, be on the lookout for potential errors or inconsistencies. Do the dimensions on the floor plan align with the dimensions on the elevation? Do the specifications match the notes on the drawings? Discrepancies can happen, and finding them early can save significant time and money. Think of this as proofreading an important document—small errors can have major consequences. For example, a mismatched dimension between a floor plan and a section drawing could create problems during construction. Careful cross-referencing can help identify these issues.
Communicating About Drawings
Clear communication about architectural drawings is essential. Develop a system for marking up drawings with questions or needed clarifications. Use precise language when discussing drawing elements with architects and contractors. For example, instead of saying "the thing over there," refer to "the window on the west elevation of the master bedroom." This precision minimizes misunderstandings and ensures everyone is on the same page. Using standard architectural terminology, such as referring to a “lintel” instead of a “beam over the window,” further strengthens communication.
Tips for Retaining Spatial Relationships
Understanding the spatial relationships between different drawings is key to interpreting the overall design. One helpful technique is to mentally "walk through" the building using the floor plans. Visualize how the spaces connect and imagine moving from room to room. This mental exercise helps solidify the spatial relationships between different areas of the building. Regularly cross-referencing between floor plans, elevations, and sections further helps connect the 2D representations into a mental 3D model.
Organizing Large Drawing Sets
Large projects can involve hundreds of drawings. Develop an organizational system for managing these extensive document sets. This could involve using digital tools like Procore to track revisions and comments, or simply setting up a well-organized physical filing system. A logical system ensures easy access to information and prevents wasted time searching for specific drawings. This methodical approach keeps the right information readily available when needed. Additionally, a consistent naming convention for digital files can dramatically improve organization.
By implementing these practical strategies, you can confidently navigate architectural drawings and contribute effectively to any construction project. This expertise is valuable for both homeowners and professionals, enabling everyone to actively participate in the building process.
